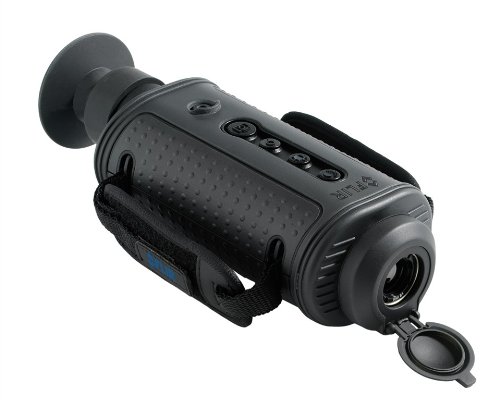

Includes “hot shoe” attachment provides power-in and RCA composite video-out connections while maintaining the camera’s tripod mounting capability Specification: Magnification: 1x FOV: 24? ? 18?, 12? ? 9? (w/Optional 2? Extender) Detector type: Micro bolometer Spectral response: 7.5 – 13.5 ?m. Thermal sensitivity: Range to detect a human: 440 m. (880 m. w/Optional 2? Extender) Output format: NTSC or PAL composite video RCA jack Digital zoom: 2x (digital) Windage and elevation adjustment: No Afocal 2x lens: Yes Tripod mountable: Yes Mounting bracket: No Reticle: No Brightness adjustment: Yes Power supply: 4 x 1.5 V AA type battery Start-up time: Operating time w/one battery pack up to 6 hrs External power supply: 14 V DC Operating temperature: -20 to +60?C Waterproof: Yes Brightness: Adjusts 8 levels of screen brightness Polarity: Switches between white-hot and black-hot display modes Shuttered eyepiece: Keeps light from coming out of the viewfinder, helping the operator to stay covert Rugged design: All-weather design is built to withstand the demands of day-in, day-out law enforcement operations and even submersible Radio frequency transmitter: Enables the transmission of thermal images up to 30 feet through the use of the optional wireless video receiver SD Card slot: Allows for easy field upgrades and the storage of captured still images and video evidence on the removable SD card USB2 Connection: Rapid transfer of still images and video from the H-Series to a PC Two-sided hand strap: Accommodates both left-handed and right-handed users Battery compartment: Four rechargeable AA NiMH batteries are good for more than six hours of continuous operation H-Series also runs on standard non-rechargeable alkaline and Lithium Ion AA batteries Image/Video save: Records still images or video to SD Card Power
